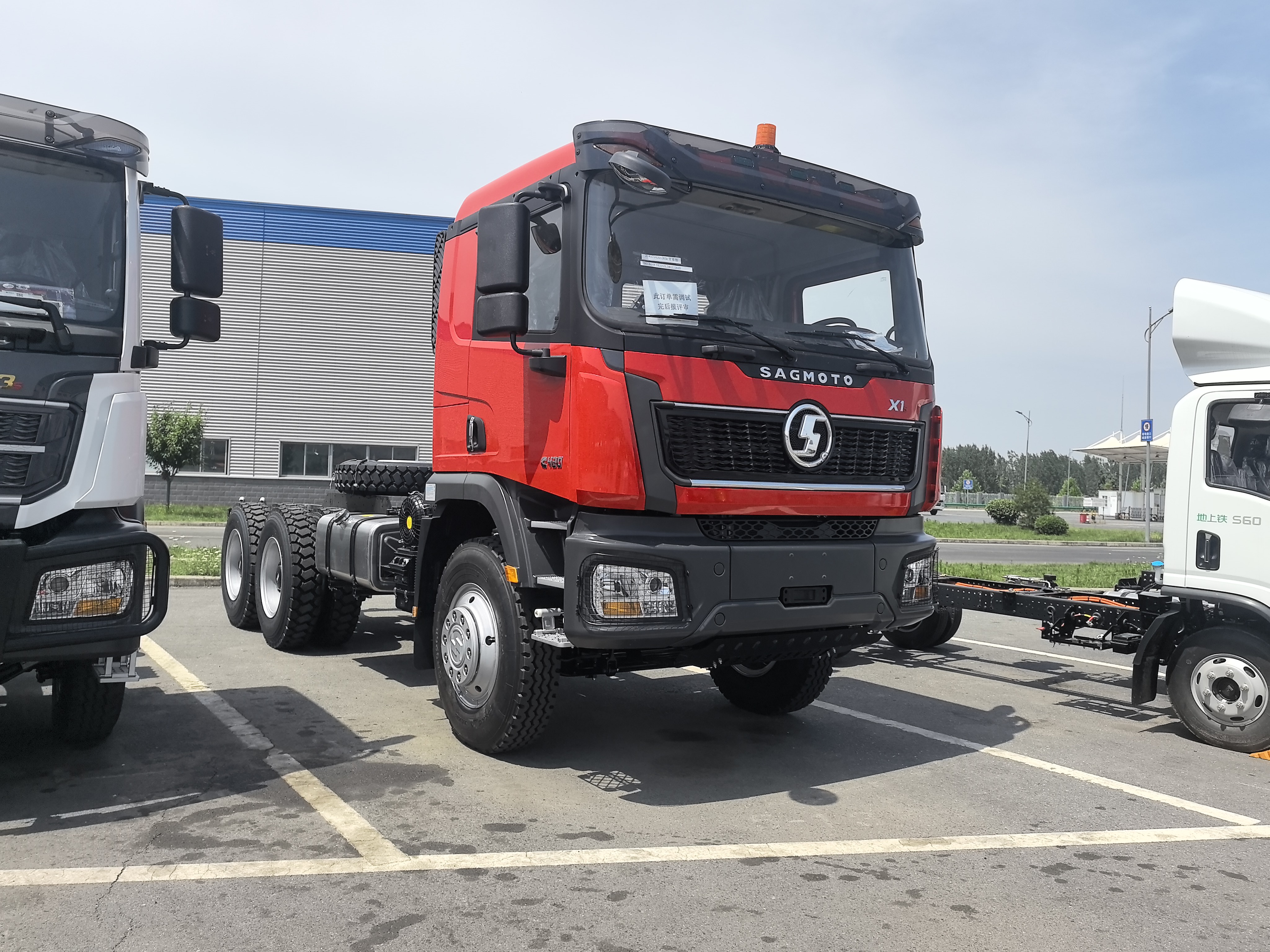

X1s Dump Truck Series
Built for Latin America's toughest mining and construction environments, the X1s dump truck series combines Cummins engine reliability, MAN-technology axles, and a comprehensive factory protection package. Available in 6x4 (50T GVW) and 8x4 (90T GVW) configurations, the X1s delivers exceptional value at 40-60% less than equivalent European trucks.
Key Features
Cummins Engine — Global Support Network
Choose between Cummins ISME420 (420HP, 10.8L) for the 6x4 or Cummins M13E3 550 (520HP, 12.5L) for the 8x4. Both backed by the extensive Cummins service network across Latin America.
MAN-Technology HDZ16T Axles
Double-stage cast widened axles with 5.262 ratio — engineered for extreme torque multiplication on steep grades and soft terrain.
360° Surround-View Camera — Standard
Complete bird's-eye visibility eliminates blind spots during loading, unloading, and maneuvering. A premium safety feature included at no extra cost.
Complete Factory Protection Package
Headlight grilles, tail light grilles, water tank guard, oil pan guard, fuel tank anti-theft, battery anti-theft — all standard from the factory.
Mining-Reinforced Suspension (8x4)
14/14/12 four-main-leaf with four U-bolts — heavy-duty mining specification for sustained 90-ton operation in off-road conditions.
Latin America-Ready: Oil-Bath Air Filter
Superior dust filtration for dry, dusty mining and construction environments — far more effective than standard dry-element filters.
Technical Specifications
| Parameter | X1s 6x4 | X1s 8x4 |
|---|---|---|
| Model Code | SX3253L5M42J3840 | SX3313L5M55J3460 |
| Drive Type | 6x4 | 8x4 |
| GVW | 50 Tons | 90 Tons |
| Wheelbase | 3,775 + 1,400 mm | 1,950 + 3,425 + 1,400 mm |
| Cab | X1s Mid-Length Semi-High Roof | |
| Engine Brand | Cummins | |
| Engine Model | ISME420 30 (JACOB) | M13E3 550 |
| Power | 420 HP | 520 HP |
| Displacement | 10.8 Liters | 12.5 Liters |
| Emission Standard | Euro III | |
| Transmission | FAST 12JSD200T-B + QH50 | FAST 12JSDX240T + QH50 |
| Front Axle | HDZ9.5T | |
| Rear Axle | HDZ16T MAN Double-Stage Cast Widened — 5.262 | |
| Suspension | 10/12 Four Main Leaf | 14/14/12 Mining Reinforced |
| Frame | 850 x 300 mm (8+7) | (970-850) x 320 mm / 8+7+8 |
| Fuel Tank | 400L Aluminum Alloy | |
| Tires | 13R22.5 Mixed Front / Mining Rear | |
| Air Filter | Oil-Bath Type | |
| Battery | 180Ah Maintenance-Free | |
Cab & Safety Features
| Feature | X1s 6x4 | X1s 8x4 |
|---|---|---|
| Camera System | 360-degree Surround-View Camera | |
| Driving Recorder | Standard | |
| Instrument Cluster | 10-inch LCD Digital | 7-inch LCD Digital |
| Air Conditioning | Automatic Climate Control (Jackcel Compressor) | |
| Audio System | Bluetooth Radio with 5-inch Screen | |
| LED DRL | Standard | |
| Sunshade Lights | Yellow Illuminated | |
| Backup Buzzer | Standard | |
| Protection Grilles | Headlight + Tail Light + Water Tank + Oil Pan | |
| Anti-Theft | Fuel Tank + Battery | |
| Fire Extinguisher | 8KG — Standard | |
Available Variants

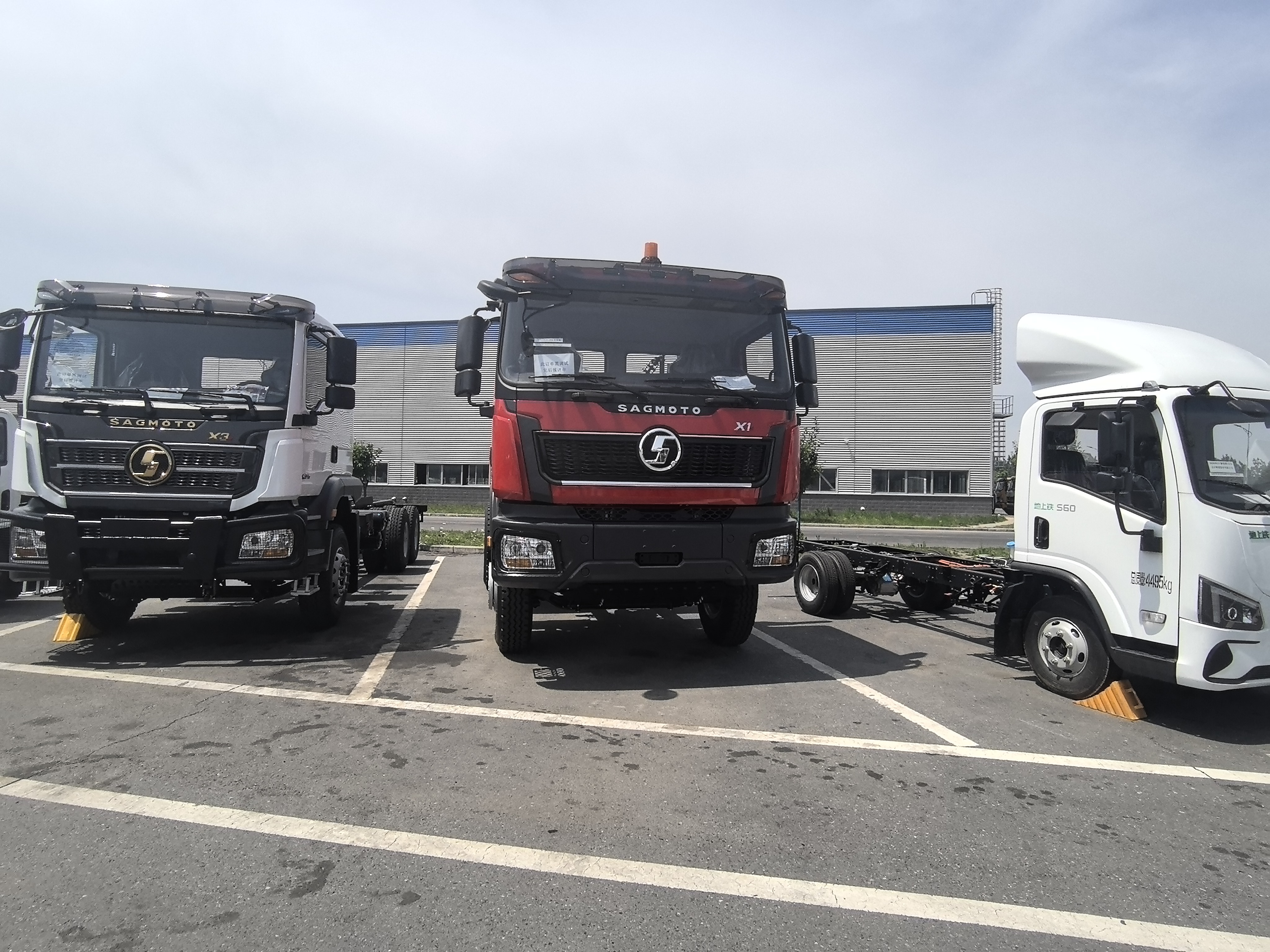

X1s 6x4 Dump Truck
Cummins ISME420 | 420 HP | 50T GVW

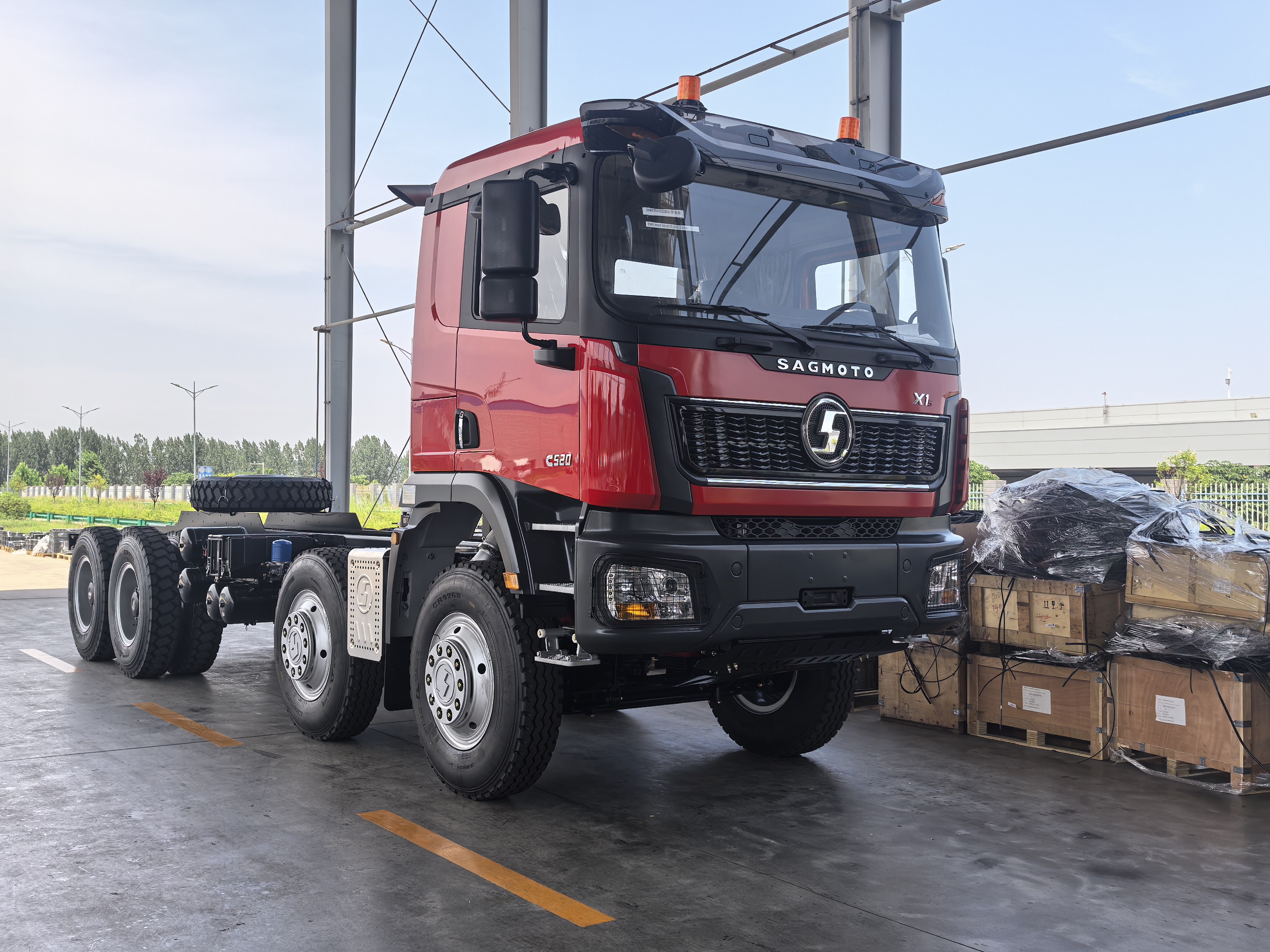

X1s 8x4 Dump Truck
Cummins M13E3 550 | 520 HP | 90T GVW

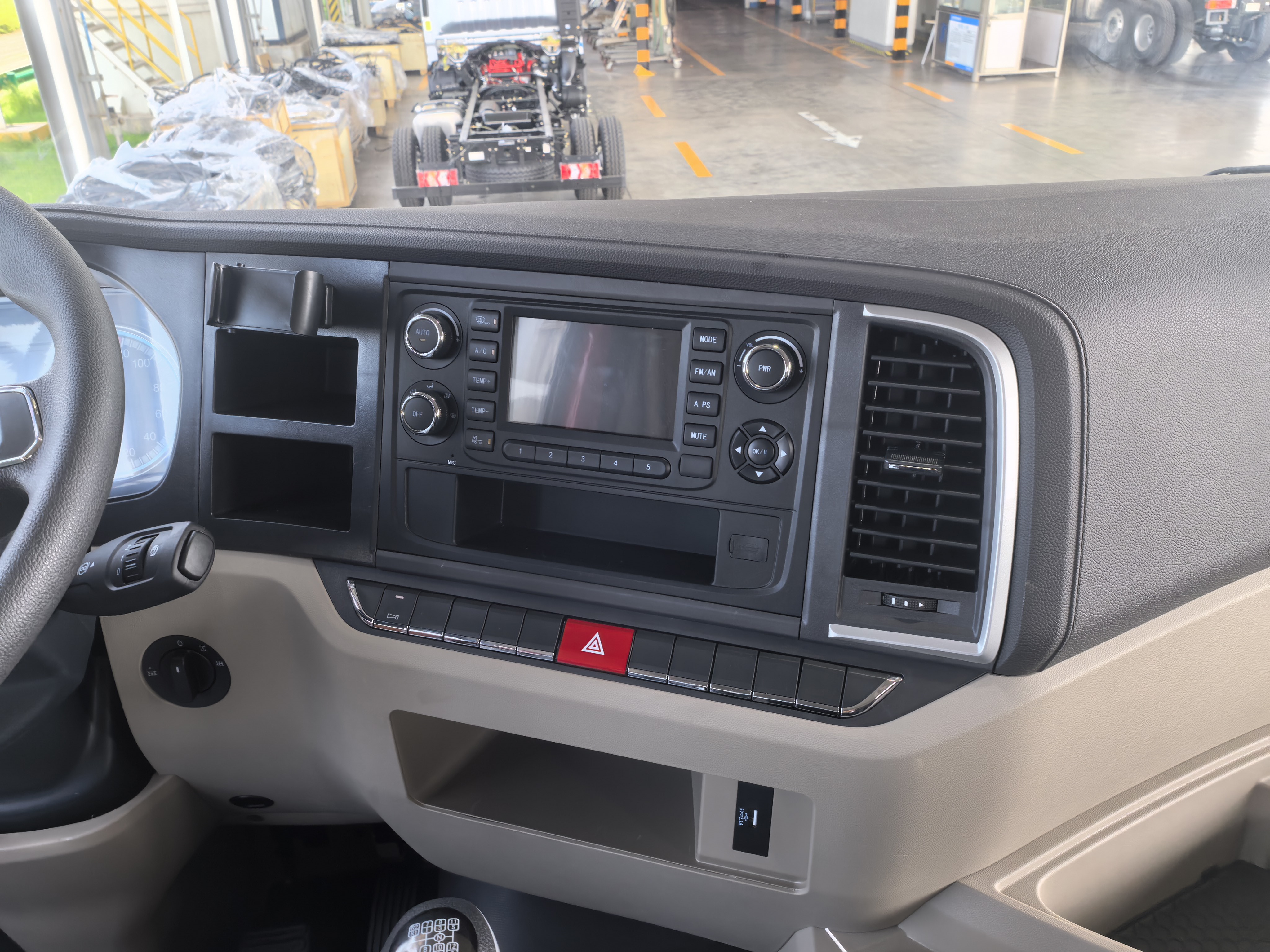

Spacious & Modern Cab

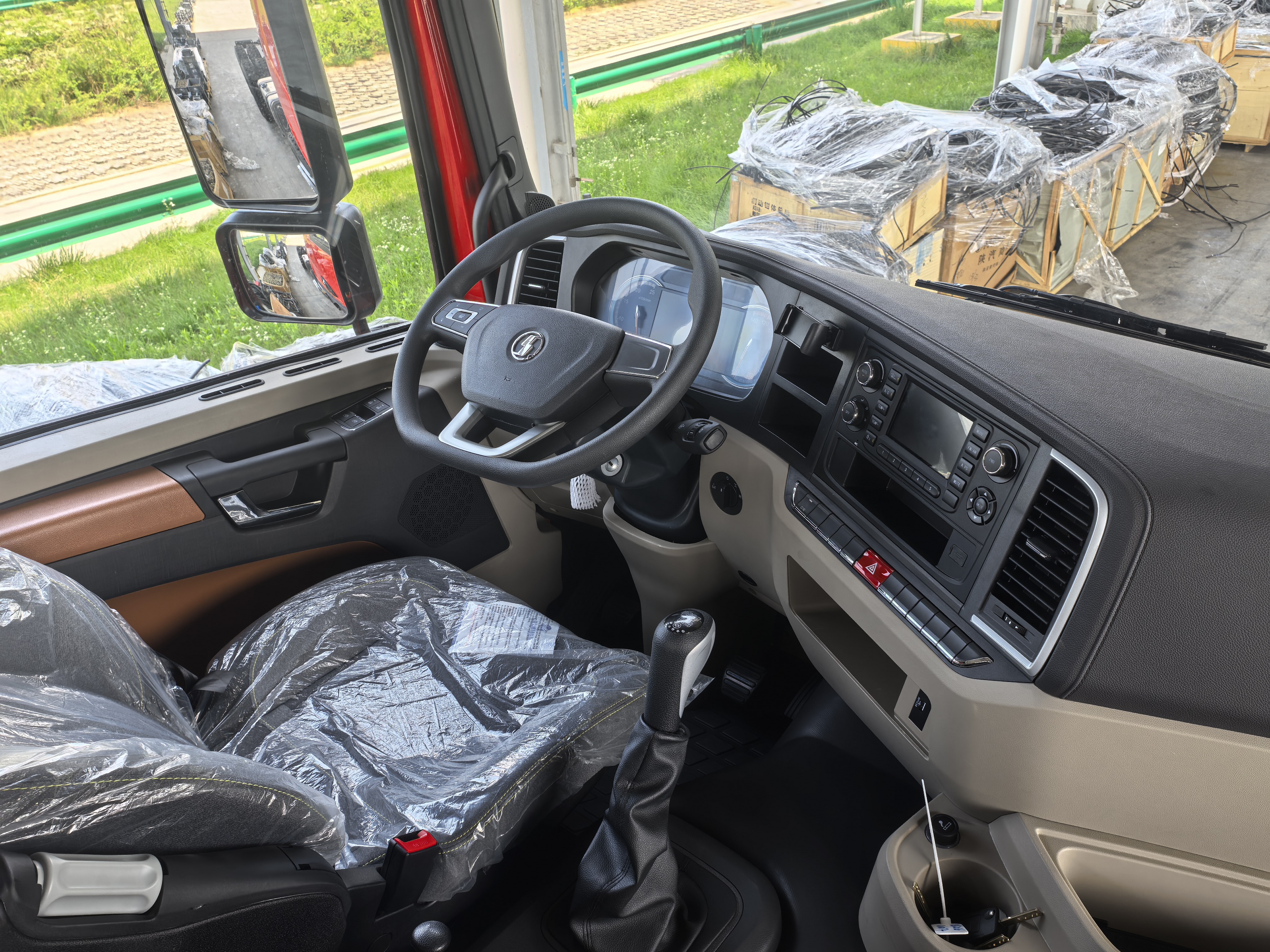

Infotainment & Controls
5-inch Bluetooth radio + climate control

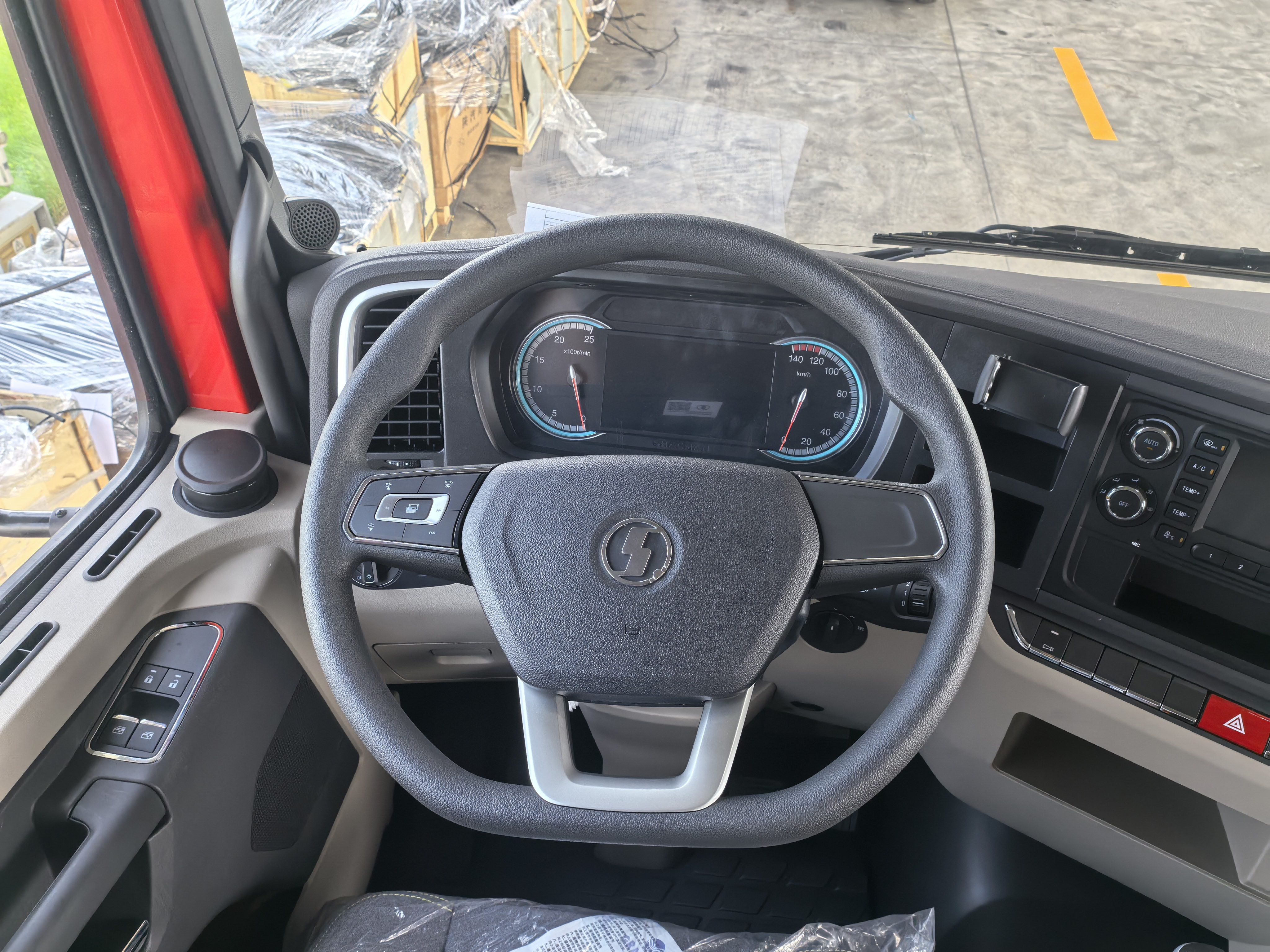

Digital Instrument Cluster
10-inch LCD with Cummins diagnostics
Dual-Seat Layout
Air-suspension driver seat + passenger seat
Overnight Sleeper
Fold-down bed for long-haul comfort

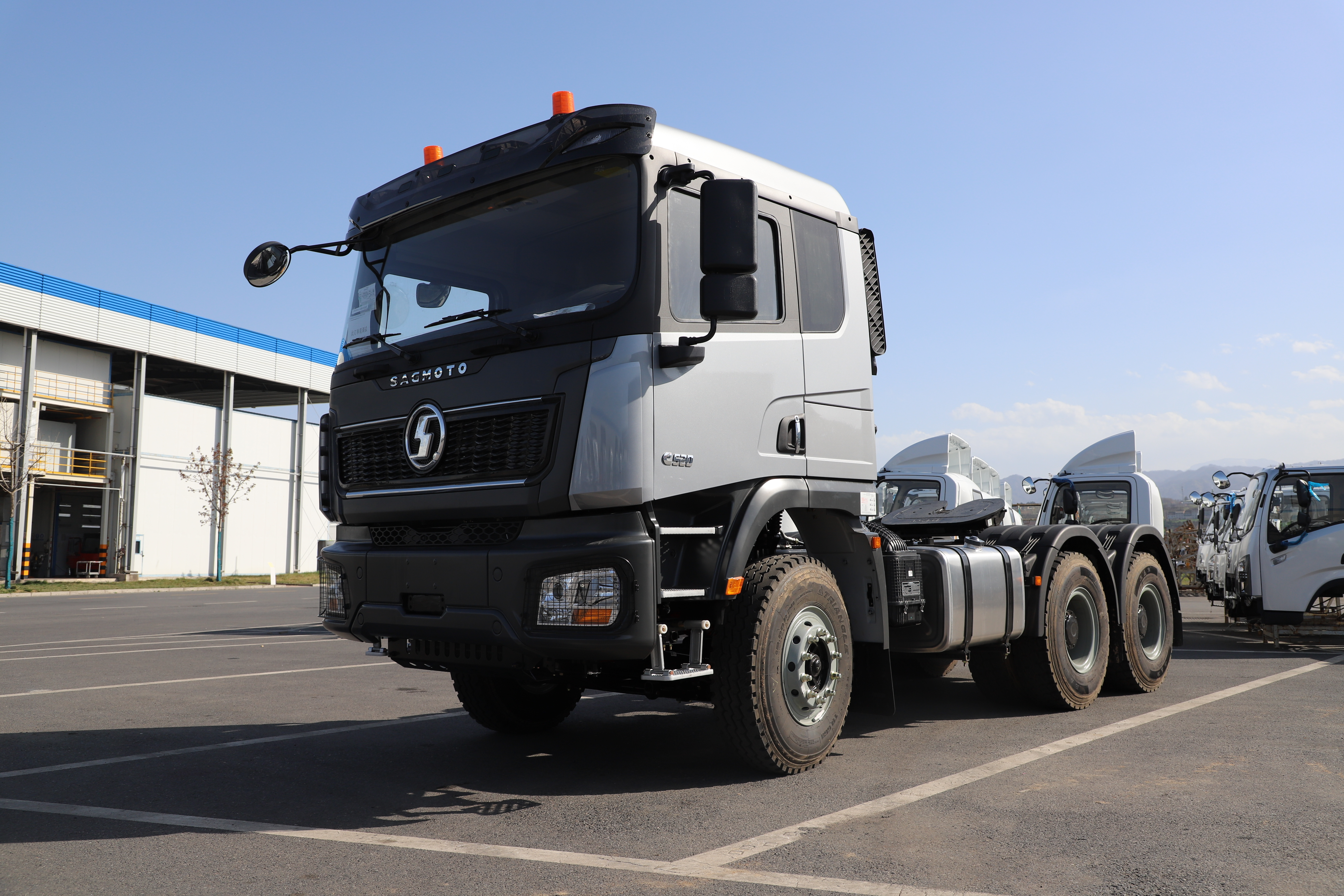

X1s Tractor Variant
X1s 6x4 Tractor Truck
The same X1s heavy-duty platform configured as a long-haul tractor for container, tanker, and flatbed trailer operations. Features the same Cummins C520 engine and MAN HDZ16T axles, paired with a high-roof sleeper cab for driver comfort on multi-day routes.

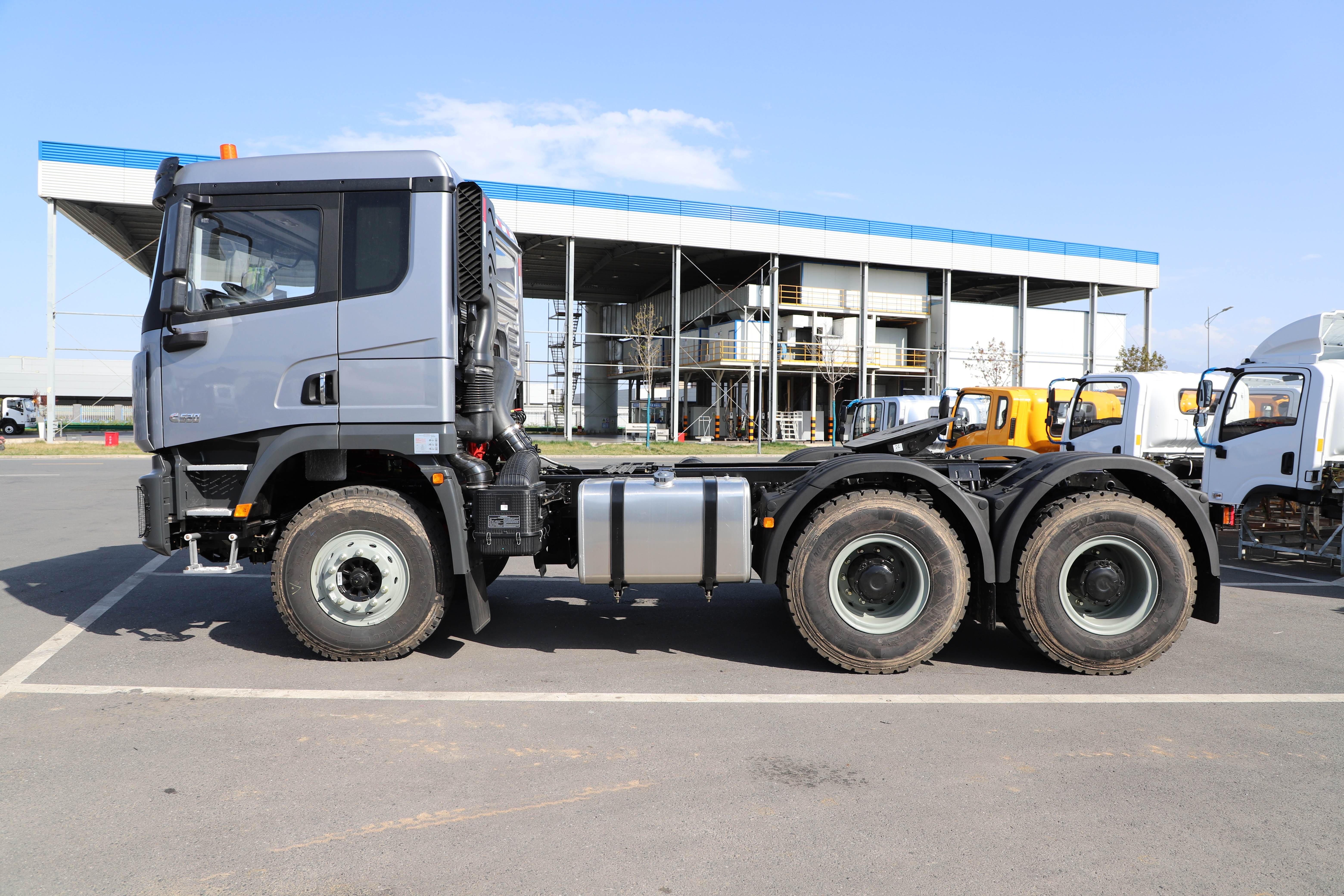

Side Profile
Streamlined high-roof sleeper

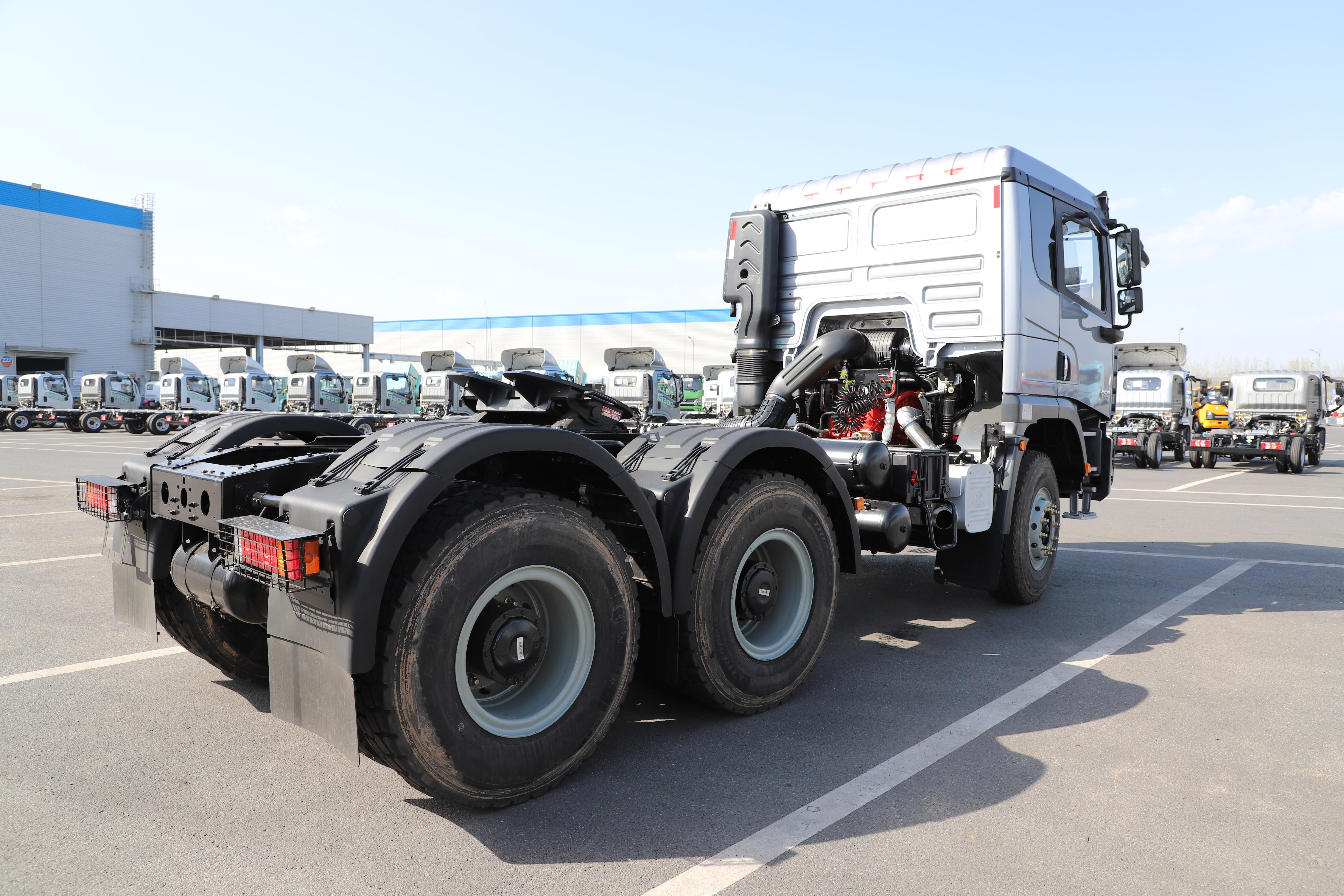

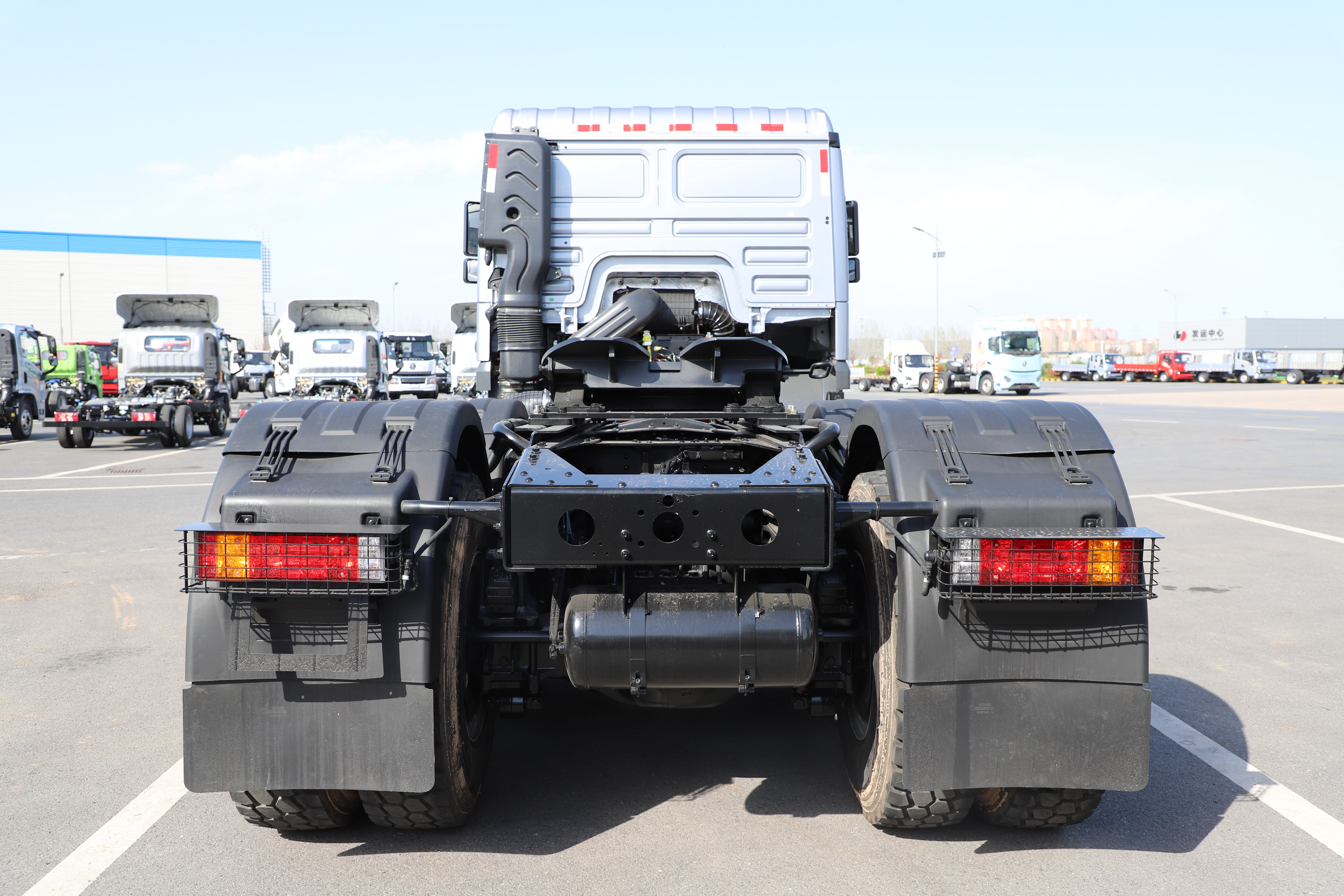

Rear Fifth Wheel
Heavy-duty coupling system

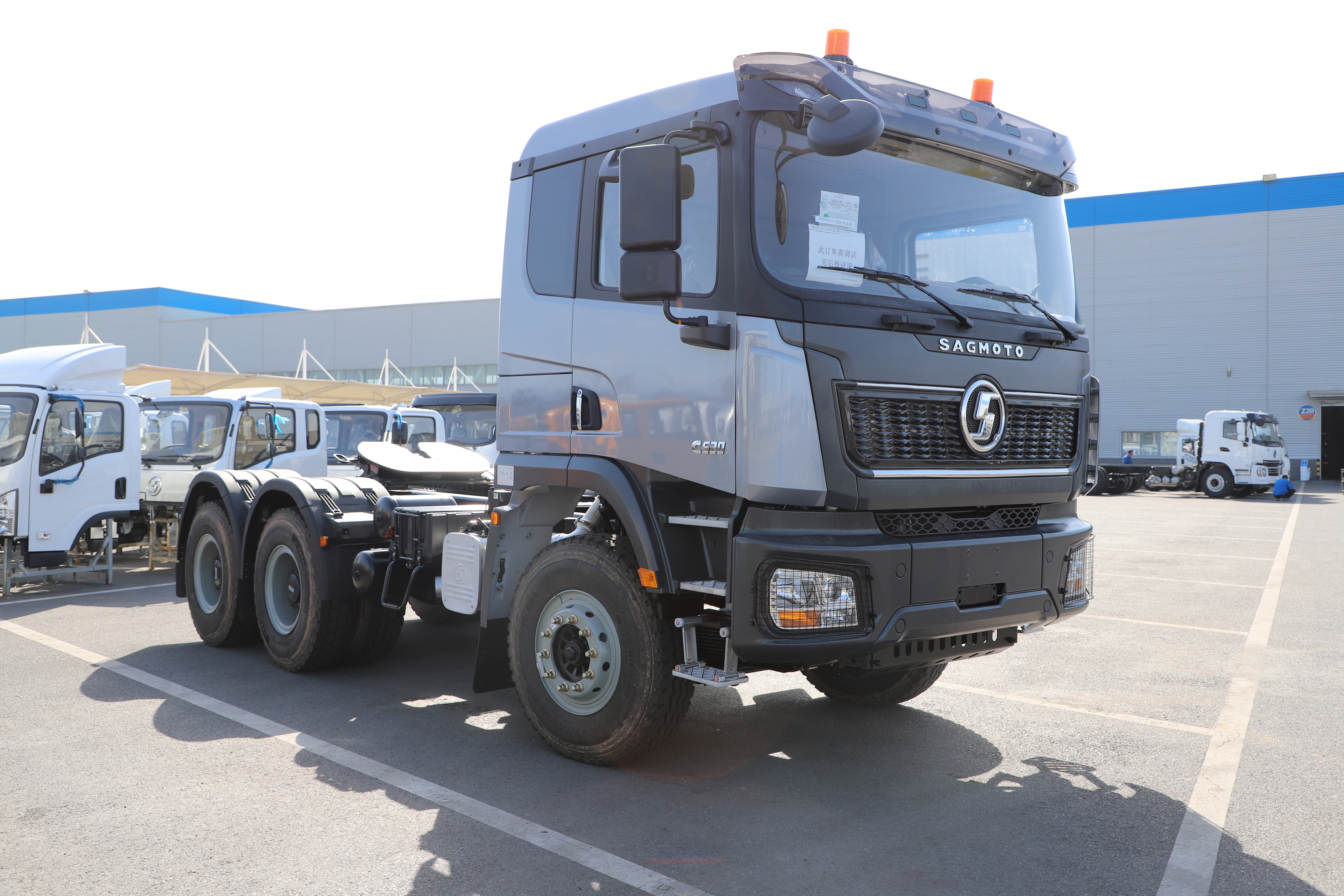

Front Styling
Modern LED DRL + protective grille
Powertrain Detail
Cummins engine + rear axle close-up
Applications
Frequently Asked Questions About X1s Trucks
What engine powers the X1s dump truck?
The SAGMOTO X1s runs on Cummins engines: ISME420 (420HP, 10.8L) with JACOB engine brake for 6x4, and M13E3 550 (520HP, 12.5L) for 8x4. The tractor variant uses the Cummins C520 (520HP). All backed by the global Cummins service network across Latin America, Africa, and the Middle East.
How much does the X1s cost?
FOB China pricing starts from ~$38,000 USD for the 6x4 dump truck, $43,000-$55,000 for the 8x4 mining configuration, and ~$38,000 for the 6x4 tractor. Final price depends on customization, order quantity, and destination. Request a quote for your specific requirements.
Why choose X1s over European trucks?
The X1s delivers 40-60% cost savings vs. comparable European mining trucks, while offering the same core components: Cummins engines, MAN-technology axles, 360° camera (standard), oil-bath air filter, and complete factory protection — all included at base price.
What configurations are available?
Three variants: 6x4 Dump Truck (50T, 420HP), 8x4 Dump Truck (90T, 520HP, mining suspension), and 6x4 Tractor Truck (520HP, high-roof sleeper with fold-down bed, heavy-duty fifth wheel).
Which markets do you serve?
We export to 50+ countries: Latin America (Peru, Chile, Mexico, Colombia, Argentina, Brazil...), Africa (Nigeria, Ghana, Kenya, South Africa, Tanzania, Congo...), Middle East (Saudi Arabia, UAE, Iraq...), Southeast Asia (Philippines, Vietnam, Indonesia...), and Central Asia.
Is spare parts support available?
Yes. As an authorized SAGMOTO export dealer, Shaanxi Fenghan Trading provides genuine OEM parts, technical documentation, and after-sales service. Cummins engines are additionally covered by the global Cummins service network.
